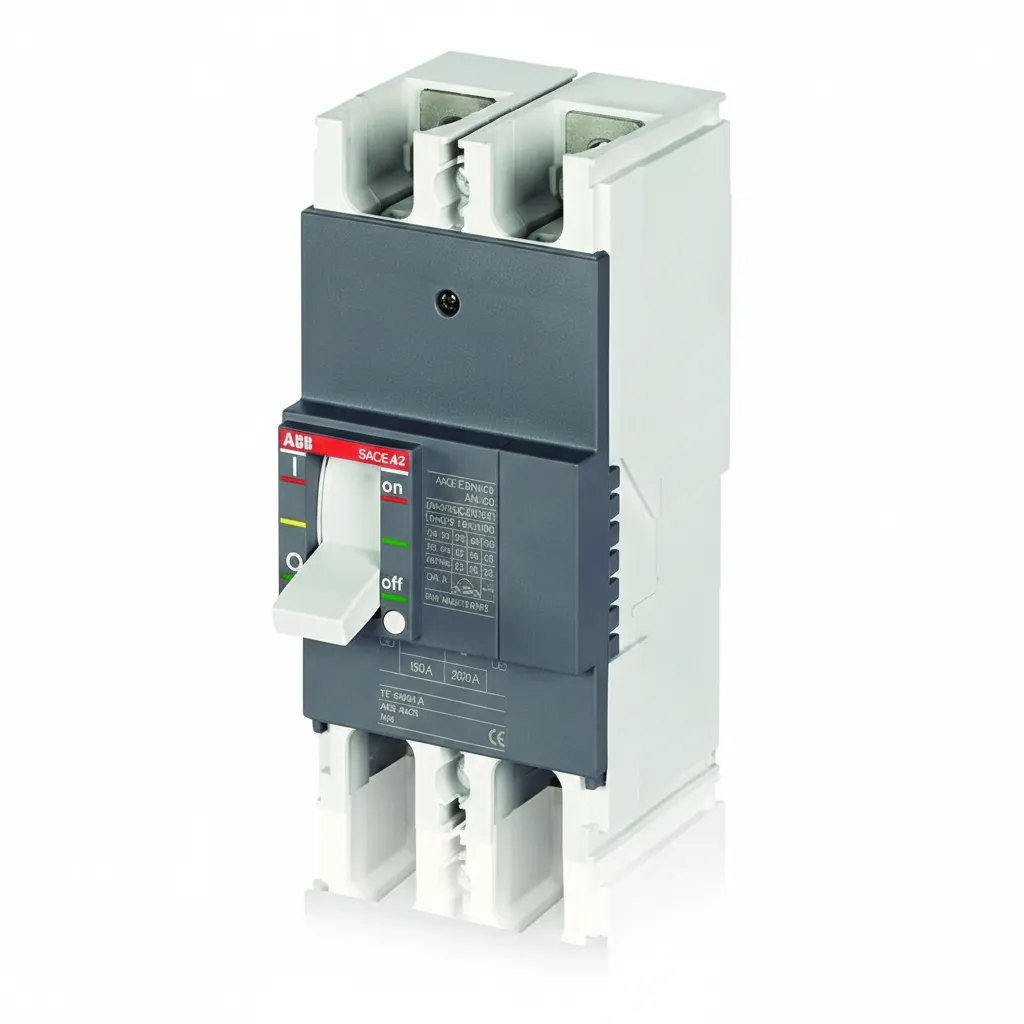

Prevent Costly Electrical Downtime
A single short circuit can shut down your entire facility and delay critical operations. The ABB MCCB delivers precise selective protection that keeps unaffected circuits running and your project on schedule.
How the ABB MCCB Improves System Reliability?
Electrical protection should isolate problems, not amplify them. Adjustable trip settings provide precise control over fault thresholds, allowing the breaker closest to the issue to disconnect first instead of shutting down an entire building. This approach creates true selective coordination that keeps factories running, offices powered, and data centers online. High breaking capacity interrupts extreme short-circuit currents safely and consistently, protecting switchboards and connected equipment even during severe fault conditions. Ekip electronic trip units also introduce intelligent monitoring into the protection system by delivering real-time visibility into current, voltage, and energy usage. Facility managers can use this data to prevent nuisance tripping, balance loads efficiently, and maintain stable operations.
A compact modular design maximizes panel space without sacrificing performance, giving facilities high-power protection within a smaller footprint. This design makes system expansion cleaner and more efficient while maintaining strong electrical protection. Double insulation further improves operational safety by isolating live internal components from the user interface, allowing maintenance teams to operate and inspect equipment with greater confidence and reduced risk. The outcome is clear: fewer shutdowns, stronger system coordination, improved energy performance, and dependable protection across industrial, commercial, renewable, and marine environments.
Key Benefits
- Reduced Facility Downtime: Adjustable trip settings enable accurate selective coordination
- Superior Short Circuit Protection: High breaking capacity handles extreme fault currents safely
- Real Time Power Monitoring: Ekip electronic trip units provide measurable electrical data
- Optimized Panel Space: Compact modular housing supports high density installations
- Enhanced Operator Safety: Double insulation protects users from live internal components
- Infrastructure Ready Design: Built for industrial plants, commercial buildings, data centers, renewable systems, and marine applications
Technical Specifications
| Category | Details |
|---|---|
| Product Type | Molded Case Circuit Breaker MCCB |
| Frame Sizes | Multiple frame options for low to high capacity distribution systems |
| Current Range | Configurable ratings based on application requirements |
| Dimensions | Compact molded housing optimized for panel depth efficiency |
| Materials | High grade thermoset insulated case with reinforced internal arc chambers |
| Insulation Design | Double insulated front interface for operator protection |
| Mounting | Fixed or plug in panel mounted configuration |
| Compatibility | Industrial switchboards, commercial distribution panels, renewable energy inverters, marine certified installations |
| Trip Unit Options | Thermal magnetic and electronic Ekip variants |
| Monitoring Capability | Select models support communication modules for centralized energy management |
Frequently Asked Questions
What is the difference between an MCCB and a standard circuit breaker?
– An MCCB supports higher current ratings and offers adjustable trip settings, while standard miniature breakers are typically fixed and used for lower load circuits. MCCBs are designed for industrial and commercial systems where selective coordination and higher interrupting capacity are required.
Can I use an ABB MCCB for high-end residential or commercial properties?
– Yes. While often associated with heavy industry, ABB MCCBs are ideal for large commercial buildings and high-end residential estates with significant power demands, such as HVAC systems, EV charging stations, or smart-home hubs. For homeowners, they provide a “main breaker” solution that handles higher loads than standard panels, while commercial property owners benefit from the Adjustable Trip Settings, which prevent a single faulty appliance from plunging an entire office or tenant space into darkness.
How do adjustable trip settings improve electrical system performance?
– Adjustable trip settings allow you to set the current level at which the breaker disconnects. This ensures that only the affected circuit trips during a fault, maintaining power to unaffected areas and reducing widespread operational disruption.
